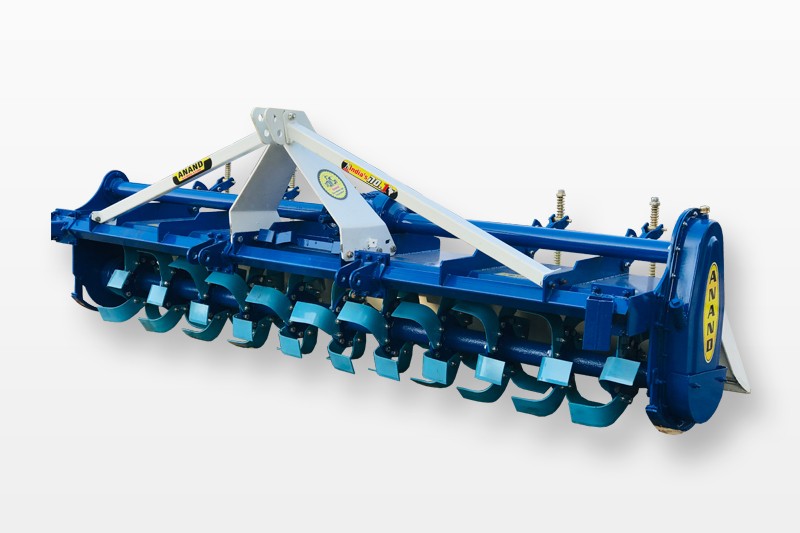

Rotavator
Rotavator
Features
- Side gear drive in an oil bath which produces less friction and smooth operation.
- Strong Frame assembly which helps the machine to work smoothly in different types of soil without any wear and tear.
- We use boron steel blades that last 50% more than Hi Carbon.
- Our Rotavator puts less load on the tractor, which makes tillage fast and economical.
- It can loosen & aerate the soil up to 6 inches deep.
- Available in L, C, J & LJF blade options for proper pulverization or as per intended application.
- Heavy duty PTO shaft with shear bolt for overload protection.
- All the Rotavator comes with extra heavy-duty spring assembly in plank, which ensures perfectly levelled and finished seedbed.
Technical Specifications
| Description | 4Ft. | 5Ft. | 6Ft. | 7Ft. | 8Ft. | 9Ft. | 10Ft. |
|---|---|---|---|---|---|---|---|
| Working Width (MM) | 1312 | 1562 | 1805 | 2050 | 2300 | 2601 | 2900 |
| Type of Blade | L / C / J / LJF Type | ||||||
| Thickness of Blade (mm) | 7 min | ||||||
| No. of Blades | 30/42 | 36/48 | 42/54 | 48/60 | 54/60 | 60/72 | 66/78 |
| Weight (Kg. Approx.) | 390 | 405 | 420 | 435 | 460 | 485 | May-01 |
| Tractor Power (HP) | 35-40 | 40-45 | 45-50 | 50-55 | 55-60 | 60-75 | 60-75 |
| Overall Dimension (mm) | |||||||
| Length | 1877 | ||||||
| Width | 1485 | 1735 | 1979 | 1010 | 2475 | 2774 | 3073 |
| Height | 1100 | ||||||
Note : The company reserves all rights to modify the specifications of machine and components there in without any prior notice.
